Internally Threaded FastenersSolid InsertsUltrasert® IV FlangedDodge M2x0.4 Ultrasert® IV Flanged Solid Inserts 3.38 mm Length
SKU No : UFBM00204-034

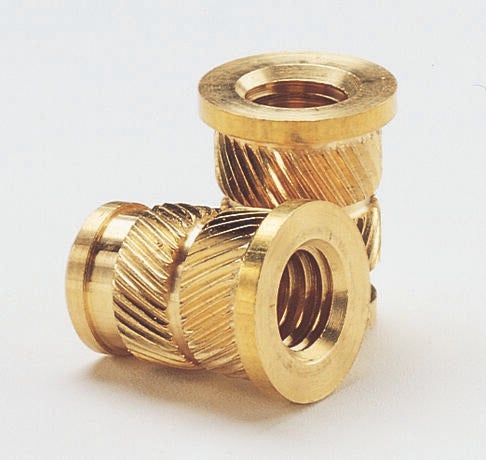

Dodge M2x0.4 Ultrasert® IV Flanged Solid Inserts 3.38 mm Length

Product description :

Dodge M2x0.4 Ultrasert® IV Flanged Solid Inserts 3.38 mm Length
M2x0.4 Metric
Thread Size
3.38 mm
Length
Brand
3.12 mm
Pilot Diameter
4.78 mm
Flange Diameter
0.48 mm
Flange Thickness
Hole Diameter Thermoplastic3.23 mm
Minimum Boss Diameter7.26 mm
Counterbore Diameter5.18 mm
Counterbore Depth0.56 mm
