Blind FasteningNon-StructuralOpen EndPOP 2mm [0.079] Aluminum / Steel Open End Rivets
SKU No : TAPD20M2BS

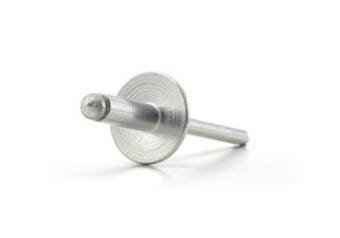

POP 2mm [0.079] Aluminum / Steel Open End Rivets

Product description :

1-3.2 mm Grip with 2.0mm mm Nominal Diameter in Dome Head Style with Aluminum Body Material and Steel Mandrel Material

Technical Specifications

PropertySpecification
Product name
1 - 3.2 Grip in Aluminum/Steel, Open End Non-Structural Blind Rivets
Nominal Diameter mm
2.0mm
Nominal Diameter Inches
2mm [0.079]
Body Material
Aluminum
Mandrel Material
Steel
Finish-Body
Plain
Finish- Mandrel
Ep-Fe/Zn
Head Style
Dome
Min grip mm
1.0
Max grip mm
3.2
Min Grip Inches
0.063
Max Grip Inches
0.126
Min Hole Size mm
2.03
Max Hole Size mm
2.13
Min Holes Size Inches
0.08
Max Hole Size Inches
0.084
Max Body Length mm
5.7
Max Body Length Inches
0.24
Max Secondary Protrusion mm
9.1
Max Secondary Protrusion Inches
0.358
Flange Diameter mm Max
3.9623999999999997
Flange Diameter inches Max
0.156
Flange Thickness mm Max
0.8
Flange Thickness Inches Max
0.029
Shear kN
0.293582626607193
Tensile kN
0.387
Shear lbf
66
Tensile lbf
87
