SKU No : T3585-4CW500S

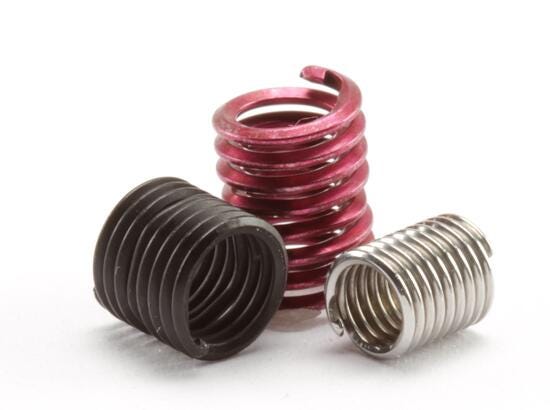

Heli-Coil 1/4-20 Tangless Screw-Locking Coarse Stainless Steel Wire Thread Inserts 0.5 Inch Dry Film Lubricant Strip Feed
Product description :
Heli-Coil 1/4-20 Tangless Screw-Locking Coarse Stainless Steel Wire Thread Inserts 0.5 Inch Dry Film Lubricant Strip Feed
Technical Specifications
| Property | Specification |
|---|---|
Brand | Heli-Coil |
Thread Size | 1/4-20 Inches |
Length | 0.5 Inch |
Locking Feature.1 | Screw-Locking |
Fine/Coarse | Coarse |
Finish | Dry Film Lubricant |
Stripfeed?(Y/N) | Y |
Material | Stainless Steel |
Formed Wire Number | WF-CI-20-B |
Wire Guide Ref. | 51228-183-20 |
Mandrel | 51228-277 |
Arbor | 51228-284 |
Machine Type | YHM |
Cut-off Die | 51228-280 |
C/O Slide | 51228-281 |
Cut-off Punch | 51228-222-1 |
Reduced Turn | 51228-282 |
Wire Clamp | 51228-285 |
Pawl | 51228-278 |
Wire Lifter | 51228-279 |
Test Bolt | 51368-4 |
Coupon | 51347-4 |
Prewinder | 17551-4 |
