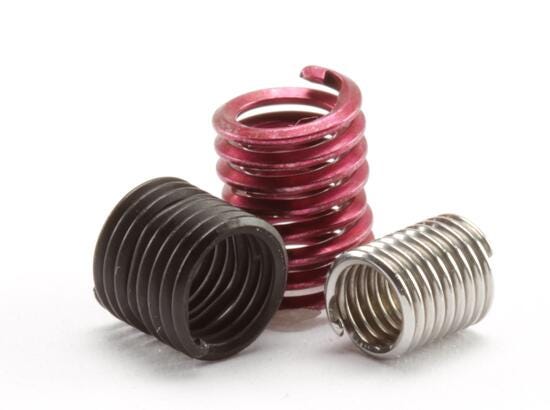

Internally Threaded FastenersWire Thread InsertsTanglessHeli-Coil 1/4-20 Tangless Screw-Locking Coarse Stainless Steel Wire Thread Inserts 0.25 Inch Primer Free
SKU No : T3585-4CPF250

Heli-Coil 1/4-20 Tangless Screw-Locking Coarse Stainless Steel Wire Thread Inserts 0.25 Inch Primer Free

Product description :

Heli-Coil 1/4-20 Tangless Screw-Locking Coarse Stainless Steel Wire Thread Inserts 0.25 Inch Primer Free

Technical Specifications

PropertySpecification
Brand
Heli-Coil
Thread Size
1/4-20 Inches
Length
0.25 Inch
Locking Feature.1
Screw-Locking
Fine/Coarse
Coarse
Finish
Primer Free
Stripfeed?(Y/N)
N
Material
Stainless Steel
Formed Wire Number
WF-CI-20-B
Wire Guide Ref.
51228-183-20
Mandrel
51228-275
Arbor
51228-284
Machine Type
YHM
Cut-off Die
51228-280
C/O Slide
51228-281
Cut-off Punch
51228-222-1
Reduced Turn
51228-282
Wire Clamp
51228-285
Pawl
51228-278
Wire Lifter
51228-279
Test Bolt
51368-4
Coupon
51347-4
Prewinder
17551-4
