SKU No : T3585-2CY328

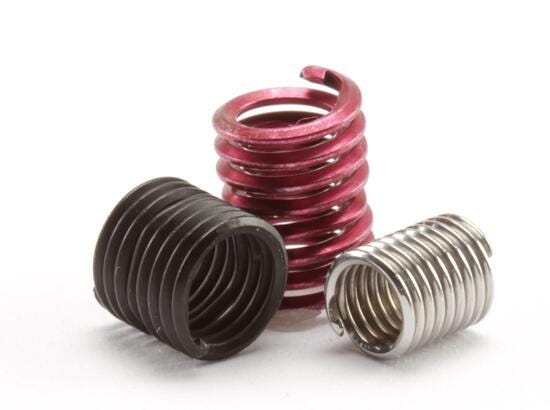

Heli-Coil 8-32 Tangless Screw-Locking Coarse Stainless Steel Wire Thread Inserts 0.328 Inch Cadmium
Product description :
Heli-Coil 8-32 Tangless Screw-Locking Coarse Stainless Steel Wire Thread Inserts 0.328 Inch Cadmium
Technical Specifications
| Property | Specification |
|---|---|
Brand | Heli-Coil |
Thread Size | 8-32 Inches |
Length | 0.328 Inch |
Locking Feature.1 | Screw-Locking |
Fine/Coarse | Coarse |
Finish | Cadmium |
Stripfeed?(Y/N) | N |
Material | Stainless Steel |
Formed Wire Number | WF-CI-32-A |
Wire Guide Ref. | 51228-183-32 |
Mandrel | 51228-55 |
Arbor | 51228-48 |
Machine Type | YHM |
Cut-off Die | 51228-190 |
C/O Slide | 51228-43 |
Cut-off Punch | 51228-222-1 |
Reduced Turn | 51228-36 |
Wire Clamp | 51228-49 |
Pawl | 51224-34 |
Wire Lifter | 51228-52 |
Test Bolt | 51368-2 |
Coupon | 51347-2 |
Prewinder | 17551-2 |
