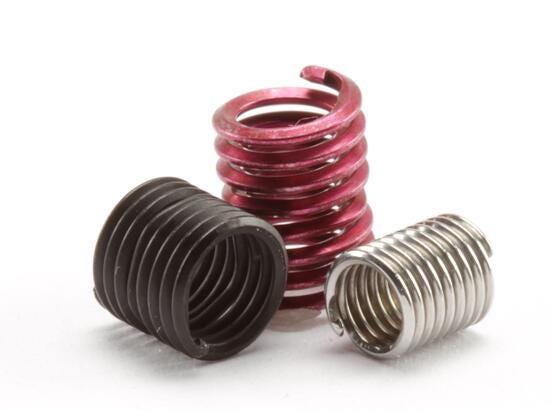

Internally Threaded FastenersWire Thread InsertsTanglessHeli-Coil 1/4-20 Tangless Free Running Coarse Stainless Steel Wire Thread Inserts 0.375 Inch Dry Film Lubricant
SKU No : T1185-4CW375

Heli-Coil 1/4-20 Tangless Free Running Coarse Stainless Steel Wire Thread Inserts 0.375 Inch Dry Film Lubricant

Product description :

Heli-Coil 1/4-20 Tangless Free Running Coarse Stainless Steel Wire Thread Inserts 0.375 Inch Dry Film Lubricant

Technical Specifications

PropertySpecification
Brand
Heli-Coil
Thread Size
1/4-20 Inches
Length
0.375 Inch
Locking Feature.1
Free Running
Fine/Coarse
Coarse
Finish
Dry Film Lubricant
Stripfeed?(Y/N)
N
Material
Stainless Steel
Formed Wire Number
WF-CI-20-B
Wire Guide Ref.
51228-183-20
Mandrel
51228-276
Arbor
51228-284
Machine Type
YHM
Cut-off Die
51228-280
C/O Slide
51228-281
Cut-off Punch
51228-222-1
Reduced Turn
51228-282
Wire Clamp
51228-285
Pawl
51228-278
Wire Lifter
51228-279
Test Bolt
51368-4
Coupon
51347-4
Prewinder
17551-4
