Internally Threaded FastenersSolid InsertsSelf ThreadingDodge M6x1 Self Threading Solid Inserts 12.29 mm Length
SKU No : STM6x1

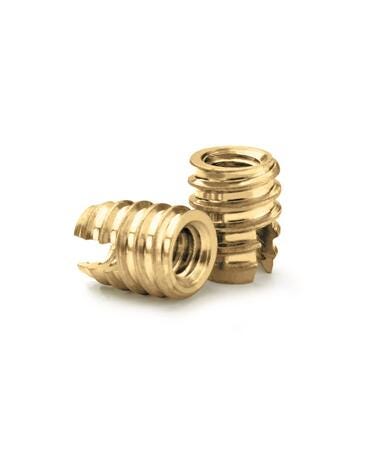

Dodge M6x1 Self Threading Solid Inserts 12.29 mm Length

Product description :

Dodge M6x1 Self Threading Solid Inserts 12.29 mm Length
M6x1 Metric
Thread Size
12.29 mm
Length
Brand
9.50 mm
Body Diameter
7.67 mm
Pilot Diameter
8.71mm
MaxHoleDiameterThermoset
Minimum Hole Diameter Thermoset8.53 mm
Max Hole Diameter Thermoplastic8.58 mm
Minimum Hole Diameter Thermoplastic8.38 mm
Hole Depth14.76 mm
Minimum Boss Diameter19.00 mm
Counterbore Diameter9.53 mm
