Internally Threaded FastenersSolid InsertsSelf Threading FlangedDodge 10-32 Self Threading Flanged Solid Inserts .404 Inch Length
SKU No : STF190-32

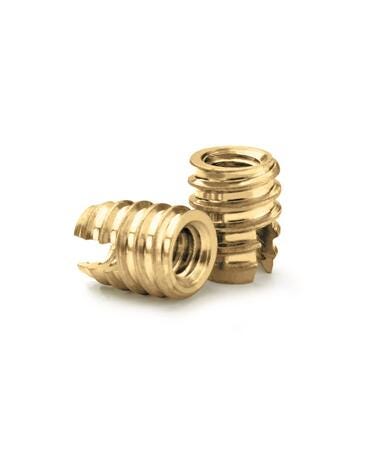

Dodge 10-32 Self Threading Flanged Solid Inserts .404 Inch Length

Product description :

Dodge 10-32 Self Threading Flanged Solid Inserts .404 Inch Length

Technical Specifications

PropertySpecification
Brand
Dodge
Thread Size
10-32 Inches
Length
.404 Inch
Pilot Diameter
.232 Inch
Flange Diameter
.375 Inch
Flange Thickness
.040 Inch
MaxHoleDiameterThermoset
.270Inch
Minimum Hole Diameter Thermoset
.264 Inch
Max Hole Diameter Thermoplastic
.264 Inch
Minimum Hole Diameter Thermoplastic
.259 Inch
Hole Depth
.480 Inch
Counterbore Diameter
.270 Inch
Counterbore Depth
.056 Inch
