Blind FasteningNon-StructuralPull-ThruPOP 3.2mm [1/8] Steel / Steel Pull-Thru Rivets
SKU No : SKK3025PT

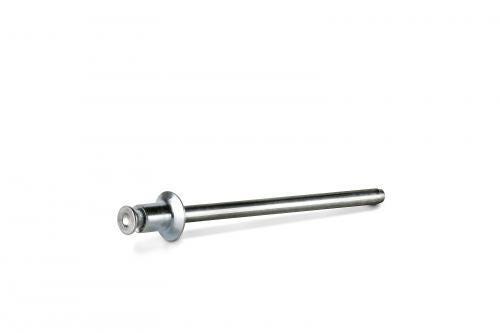

POP 3.2mm [1/8] Steel / Steel Pull-Thru Rivets

Product description :

1.4986-2.0066 mm Grip with 3.2 mm Nominal Diameter in Countersunk Head Style with Steel Body Material and Steel Mandrel Material

Technical Specifications

PropertySpecification
Product name
1.4986 - 2.0066 Grip in Steel/Steel, Pull-Thru Non-Structural Blind Rivets
Nominal Diameter mm
3.2
Nominal Diameter Inches
3.2mm [1/8]
Body Material
Steel
Mandrel Material
Steel
Finish-Body
Zinc Plate
Finish- Mandrel
Plain or Protective Coat
Head Style
Countersunk
Min grip mm
1.4986000000000002
Max grip mm
2.0065999999999997
Min Grip Inches
0.059
Max Grip Inches
0.079
Min Hole Size mm
3.2766
Max Hole Size mm
3.4036
Min Holes Size Inches
0.129
Max Hole Size Inches
0.134
Max Body Length mm
2.6924
Max Body Length Inches
0.10600000000000001
Max Secondary Protrusion mm
2.6924
Max Secondary Protrusion Inches
0.10600000000000001
Flange Diameter mm Max
5.4864
Flange Diameter inches Max
0.216
Flange Thickness mm Max
0.9905999999999999
Flange Thickness Inches Max
0.039
Shear kN
0.80067989074689
Tensile kN
0.6983707935958985
Shear lbf
180
Tensile lbf
157
