Vibration Resistant Threaded FastenersSpiralock NutsFlange NutsSpiralock 1/4–28 Fractional Stainless Steel Hex Flange Nuts
SKU No : F04280MStSl316

Spiralock 1/4–28 Fractional Stainless Steel Hex Flange Nuts

Product description :

Spiralock 1/4–28 Fractional Stainless Steel Hex Flange Nuts

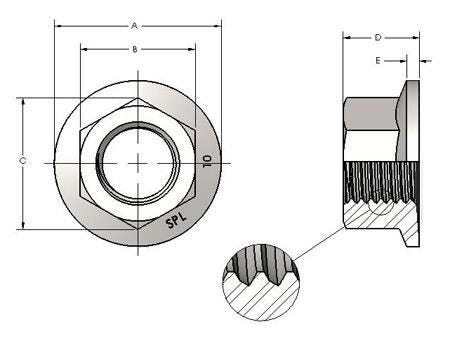

Technical Specifications

PropertySpecification
Thread Size
1/4–28 Inches
Brand
Spiralock
Flange Diameter Max
0.594 inches
Flange Diameter Min
0.574 inches
Across Flats Max
0.438 inches
Across Flats Min
0.428 inches
Across Corners Max
0.505 inches
Across Corners Min
0.488 inches
Nut Thickness Max
0.236 inches
Nut Thickness Min
0.222 inches
Flange Edge Thickness
0.04 inches
