SKU No : EB55MB5F2-2000R

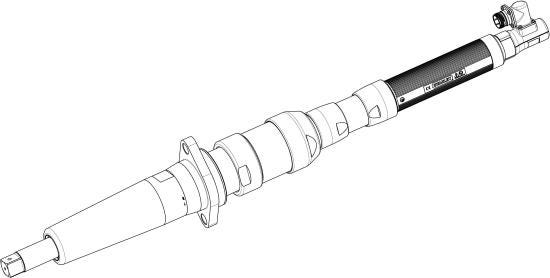

EB55MB5F2-2000R EB Series Transducerized Nutrunner

Product description :

EB55MB5F2-2000R Fixtured Corded Nutrunner With The Following Features: - Rated For 200 - 2000 NM With A Recomended Working Range Of 400 - 1600 NM - 5-50 RPM - Straight Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Redundant Torque And Angle Sensors - Direct Drive - Mult Handle For Remote Start Operation- 2 Inch Retraction - Dual Guage Transducer

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Fixtured

Handle Type

Output TypeStraight

Recommended Working Range400 - 1600 NM

Useful Tool Range200 - 2000 NM

Max Torque2000.0

Min Speed (RPM)5.0

Max Speed (RPM)50.0
