SKU No : EB55MB5F1-1100R

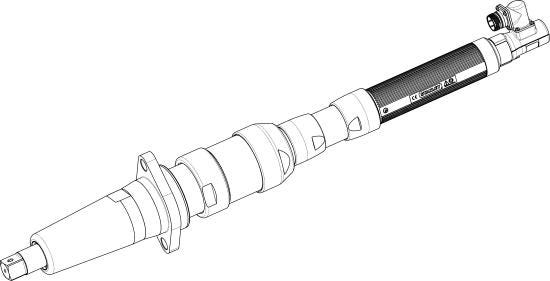

EB55MB5F1-1100R EB Series Transducerized Nutrunner

Product description :

EB55MB5F1-1100R Fixtured Corded Nutrunner With The Following Features: - Rated For 110 - 1100 NM With A Recomended Working Range Of 220 - 880 NM - 8-80 RPM - Straight Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Redundant Torque And Angle Sensors - Direct Drive - Mult Handle For Remote Start Operation- 1 Inch Retraction - Dual Guage Transducer

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Fixtured
Handle Type
Output TypeStraight
Recommended Working Range220 - 880 NM
Useful Tool Range110 - 1100 NM
Max Torque1100.0
Min Speed (RPM)8.0
Max Speed (RPM)80.0
