SKU No : EB55MB5-800R

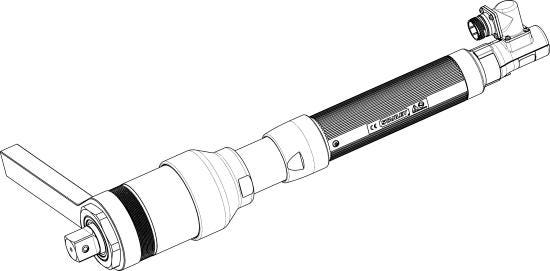

EB55MB5-800R EB Series Transducerized Nutrunner

Product description :

EB55MB5-800R Fixtured Corded Nutrunner With The Following Features: - Rated For 80 - 800 NM With A Recomended Working Range Of 160 - 640 NM - 13-125 RPM - Straight Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Redundant Torque And Angle Sensors - Direct Drive - Mult Handle For Remote Start Operation- Dual Guage Transducer

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Fixtured
Handle Type
Output TypeStraight
Recommended Working Range160 - 640 NM
Useful Tool Range80 - 800 NM
Max Torque800.0
Min Speed (RPM)13.0
Max Speed (RPM)125.0
