SKU No : EB55MA32F1-400R

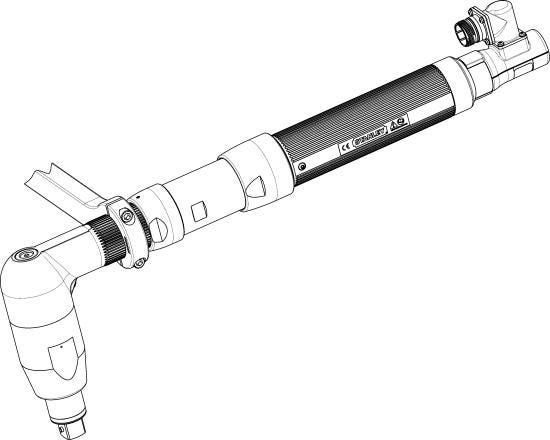

EB55MA32F1-400R EB Series Transducerized Nutrunner

Product description :

EB55MA32F1-400R Fixtured Corded Nutrunner With The Following Features: - Rated For 40 - 400 NM With A Recomended Working Range Of 80 - 320 NM - 23-225 RPM - Right Angle Output with 64mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Redundant Torque And Angle Sensors - Direct Drive - Mult Handle For Remote Start Operation- 1 Inch Retraction - Dual Guage Transducer

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Fixtured
Handle Type
Output TypeRight Angle
Recommended Working Range80 - 320 NM
Useful Tool Range40 - 400 NM
Max Torque400.0
Min Speed (RPM)23.0
Max Speed (RPM)225.0
