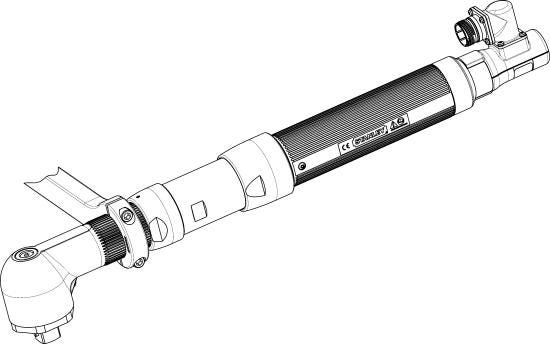

EB55MA32-400R EB Series Transducerized Nutrunner

Product description :

EB55MA32-400R Fixtured Corded Nutrunner With The Following Features: - Rated For 40 - 400 NM With A Recomended Working Range Of 80 - 320 NM - 23-225 RPM - 16 lb Tool Weight - Right Angle Output with 64mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Redundant Torque And Angle Sensors - Direct Drive - Mult Handle For Remote Start Operation- Dual Guage Transducer

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Fixtured

Handle Type

Output TypeRight Angle

Recommended Working Range80 - 320 NM

Useful Tool Range40 - 400 NM

Max Torque400.0

Min Speed (RPM)23.0

Max Speed (RPM)225.0
