SKU No : EB55MA32-300

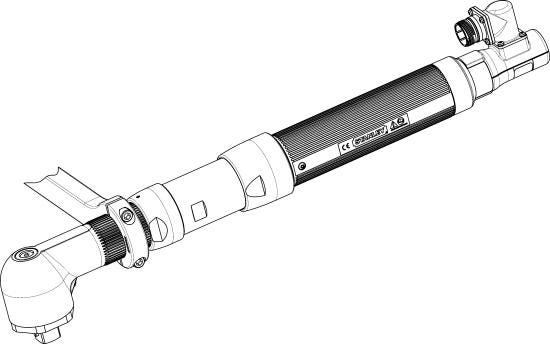

EB55MA32-300 EB Series Transducerized Nutrunner

Product description :

EB55MA32-300 Fixtured Corded Nutrunner With The Following Features: - Rated For 30 - 300 NM With A Recomended Working Range Of 60 - 240 NM - 34-340 RPM - Right Angle Output with 64mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Mult Handle For Remote Start Operation

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Fixtured
Handle Type
Output TypeRight Angle
Recommended Working Range60 - 240 NM
Useful Tool Range30 - 300 NM
Max Torque300.0
Min Speed (RPM)34.0
Max Speed (RPM)340.0
