SKU No : EB55MA26-160

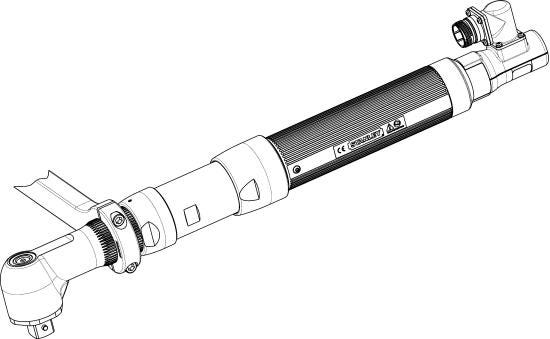

EB55MA26-160 EB Series Transducerized Nutrunner

Product description :

EB55MA26-160 Fixtured Corded Nutrunner With The Following Features: - Rated For 16 - 160 NM With A Recomended Working Range Of 32 - 128 NM - 62-620 RPM - 14 lb Tool Weight - Right Angle Output with 52mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Mult Handle For Remote Start Operation

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Fixtured
Handle Type
Output TypeRight Angle
Recommended Working Range32 - 128 NM
Useful Tool Range16 - 160 NM
Max Torque160.0
Min Speed (RPM)62.0
Max Speed (RPM)620.0
