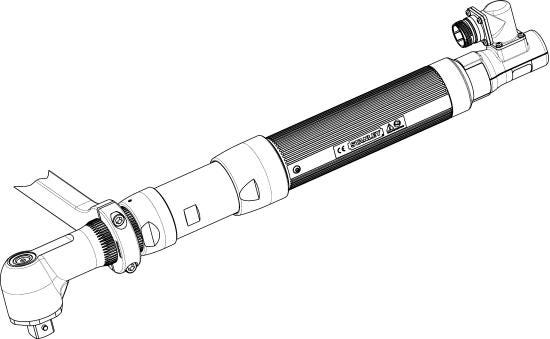

EB55MA26-120R EB Series Transducerized Nutrunner

Product description :

EB55MA26-120R Fixtured Corded Nutrunner With The Following Features: - Rated For 12 - 120 NM With A Recomended Working Range Of 24 - 96 NM - 83-825 RPM - 14 lb Tool Weight - Right Angle Output with 52mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Redundant Torque And Angle Sensors - Direct Drive - Mult Handle For Remote Start Operation- Dual Guage Transducer

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Fixtured

Handle Type

Output TypeRight Angle

Recommended Working Range24 - 96 NM

Useful Tool Range12 - 120 NM

Max Torque120.0

Min Speed (RPM)83.0

Max Speed (RPM)825.0
