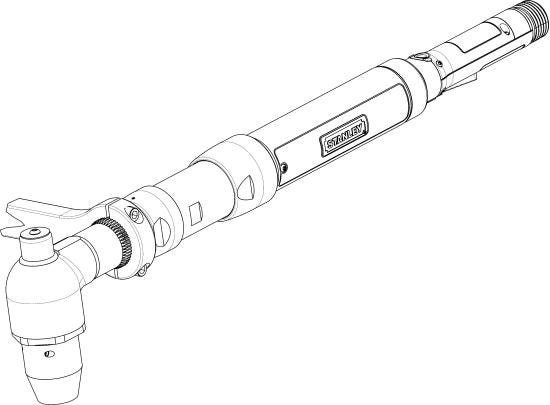

EB55LH32V1-380 EB Series Transducerized Nutrunner

Product description :

EB55LH32V1-380 Lever Start Corded Nutrunner With The Following Features: - Rated For 38 - 380 NM With A Recomended Working Range Of 76 - 304 NM - 23-225 RPM - Hold-n-Drive Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle- 1 Inch Retraction

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeHold-n-Drive

Recommended Working Range76 - 304 NM

Useful Tool Range38 - 380 NM

Max Torque380.0

Min Speed (RPM)23.0

Max Speed (RPM)225.0
