SKU No : EB55LH32V1-285

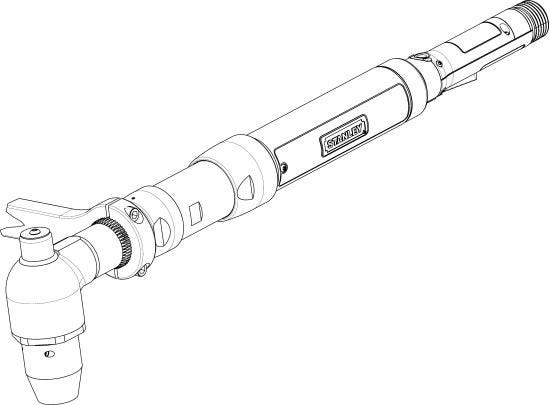

EB55LH32V1-285 EB Series Transducerized Nutrunner

Product description :

EB55LH32V1-285 Lever Start Corded Nutrunner With The Following Features: - Rated For 28.5 - 285 NM With A Recomended Working Range Of 57 - 228 NM - 34-340 RPM - Hold-n-Drive Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle- 1 Inch Retraction

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Lever Start
Handle Type
Output TypeHold-n-Drive
Recommended Working Range57 - 228 NM
Useful Tool Range28.5 - 285 NM
Max Torque285.0
Min Speed (RPM)34.0
Max Speed (RPM)340.0
