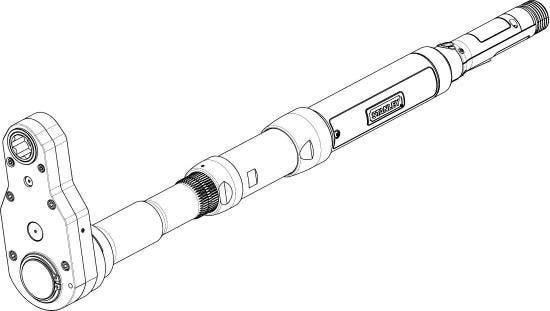

EB55LC645-150 EB Series Transducerized Nutrunner

Product description :

EB55LC645-150 Lever Start Corded Nutrunner With The Following Features: - Rated For 15 - 150 NM With A Recomended Working Range Of 30 - 120 NM - 46-459 RPM - Crowfoot Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeCrowfoot

Recommended Working Range30 - 120 NM

Useful Tool Range15 - 150 NM

Max Torque150.0

Min Speed (RPM)46.0

Max Speed (RPM)459.0
