SKU No : EB55LB5-1500

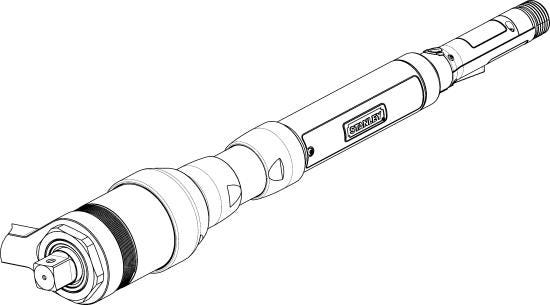

EB55LB5-1500 EB Series Transducerized Nutrunner

Product description :

EB55LB5-1500 Lever Start Corded Nutrunner With The Following Features: - Rated For 150 - 1500 NM With A Recomended Working Range Of 300 - 1200 NM - 6-60 RPM - 22 lb Tool Weight - Straight Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Lever Start
Handle Type
Output TypeStraight
Recommended Working Range300 - 1200 NM
Useful Tool Range150 - 1500 NM
Max Torque1500.0
Min Speed (RPM)6.0
Max Speed (RPM)60.0
