SKU No : EB55LB4-620

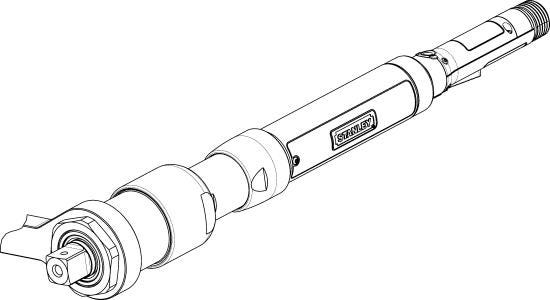

EB55LB4-620 EB Series Transducerized Nutrunner

Product description :

EB55LB4-620 Lever Start Corded Nutrunner With The Following Features: - Rated For 62 - 620 NM With A Recomended Working Range Of 124 - 496 NM - 17-165 RPM - 16 lb Tool Weight - Straight Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Lever Start
Handle Type
Output TypeStraight
Recommended Working Range124 - 496 NM
Useful Tool Range62 - 620 NM
Max Torque620.0
Min Speed (RPM)17.0
Max Speed (RPM)165.0
