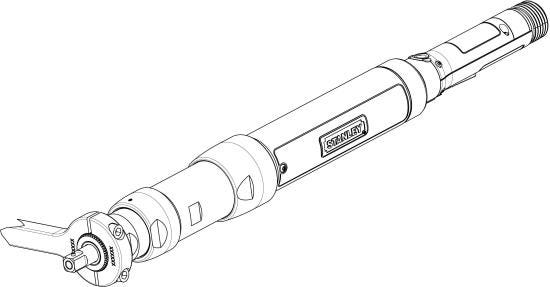

EB55LB1-100 EB Series Transducerized Nutrunner

Product description :

EB55LB1-100 Lever Start Corded Nutrunner With The Following Features: - Rated For 10 - 100 NM With A Recomended Working Range Of 20 - 80 NM - 86-853 RPM - 11 lb Tool Weight - Straight Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeStraight

Recommended Working Range20 - 80 NM

Useful Tool Range10 - 100 NM

Max Torque100.0

Min Speed (RPM)86.0

Max Speed (RPM)853.0
