SKU No : EB55LA26S0037-1000

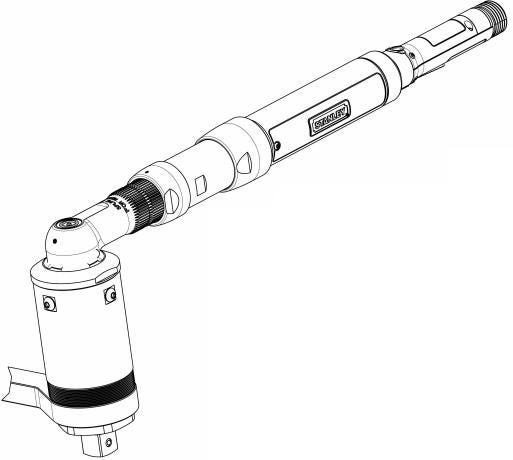

EB55LA26S0037-1000 EB Series Transducerized Nutrunner

Product description :

EB55LA26S0037-1000 Lever Start Corded Nutrunner With The Following Features: - Rated For 100 - 1000 NM With A Recomended Working Range Of 200 - 800 NM - 9-89 RPM - 25 lb Tool Weight - Right Angle Output with 52mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Lever Start
Handle Type
Output TypeRight Angle
Recommended Working Range200 - 800 NM
Useful Tool Range100 - 1000 NM
Max Torque1000.0
Min Speed (RPM)9.0
Max Speed (RPM)89.0
