SKU No : EB45MD2F2-125R

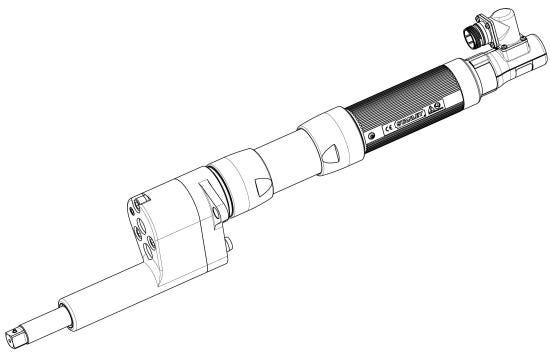

EB45MD2F2-125R EB Series Transducerized Nutrunner

Product description :

EB45MD2F2-125R Fixtured Corded Nutrunner With The Following Features: - Rated For 12.5 - 125 NM With A Recomended Working Range Of 25 - 100 NM - 47-465 RPM - Offset Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Redundant Torque And Angle Sensors - Direct Drive - Mult Handle For Remote Start Operation- 2 Inch Retraction - Dual Guage Transducer

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Fixtured
Handle Type
Output TypeOffset
Recommended Working Range25 - 100 NM
Useful Tool Range12.5 - 125 NM
Max Torque125.0
Min Speed (RPM)47.0
Max Speed (RPM)465.0
