EB45LC614-81 EB Series Transducerized Nutrunner

Product description :

EB45LC614-81 Lever Start Corded Nutrunner With The Following Features: - Rated For 8.1 - 81 NM With A Recomended Working Range Of 16.2 - 64.8 NM - 59-581 RPM - 15 lb Tool Weight - Crowfoot Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

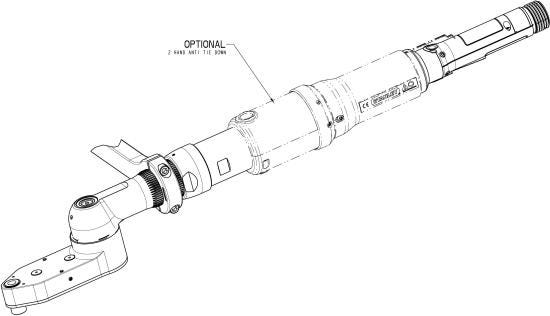

Download 2D Drawings

Corded

Power Source

Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeCrowfoot

Recommended Working Range16.2 - 64.8 NM

Useful Tool Range8.1 - 81 NM

Max Torque81.0

Min Speed (RPM)59.0

Max Speed (RPM)581.0
