SKU No : EB45LB2-190

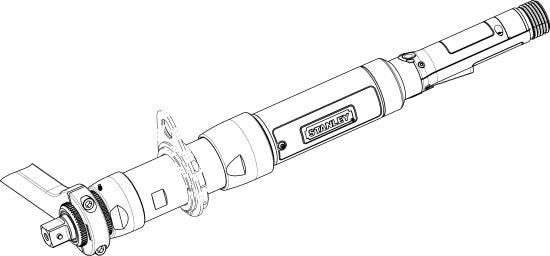

EB45LB2-190 EB Series Transducerized Nutrunner

Product description :

EB45LB2-190 Lever Start Corded Nutrunner With The Following Features: - Rated For 19 - 190 NM With A Recomended Working Range Of 38 - 152 NM - 36-355 RPM - 10 lb Tool Weight - Straight Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Lever Start
Handle Type
Output TypeStraight
Recommended Working Range38 - 152 NM
Useful Tool Range19 - 190 NM
Max Torque190.0
Min Speed (RPM)36.0
Max Speed (RPM)355.0
