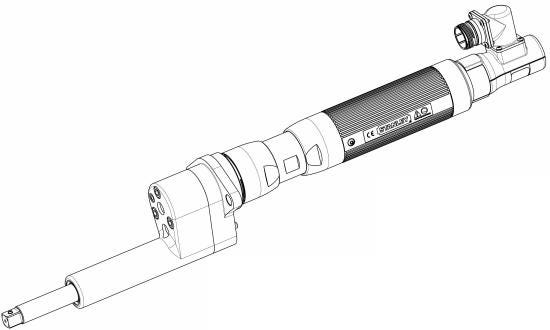

EB44MD1F2-70R EB Series Transducerized Nutrunner

Product description :

EB44MD1F2-70R Fixtured Corded Nutrunner With The Following Features: - Rated For 7 - 70 NM With A Recomended Working Range Of 14 - 56 NM - 90-895 RPM - Offset Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Redundant Torque And Angle Sensors - Direct Drive - Mult Handle For Remote Start Operation- 2 Inch Retraction - Dual Guage Transducer

Download 2D Drawings

Corded

Power Source

Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Fixtured

Handle Type

Output TypeOffset

Recommended Working Range14 - 56 NM

Useful Tool Range7 - 70 NM

Max Torque70.0

Min Speed (RPM)90.0

Max Speed (RPM)895.0
