SKU No : EB44MD1F1-70R

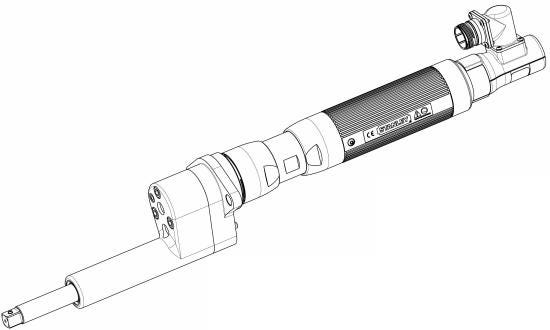

EB44MD1F1-70R EB Series Transducerized Nutrunner

Product description :

EB44MD1F1-70R Fixtured Corded Nutrunner With The Following Features: - Rated For 7 - 70 NM With A Recomended Working Range Of 14 - 56 NM - 90-895 RPM - Offset Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Redundant Torque And Angle Sensors - Direct Drive - Mult Handle For Remote Start Operation- 1 Inch Retraction - Dual Guage Transducer

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Fixtured
Handle Type
Output TypeOffset
Recommended Working Range14 - 56 NM
Useful Tool Range7 - 70 NM
Max Torque70.0
Min Speed (RPM)90.0
Max Speed (RPM)895.0
