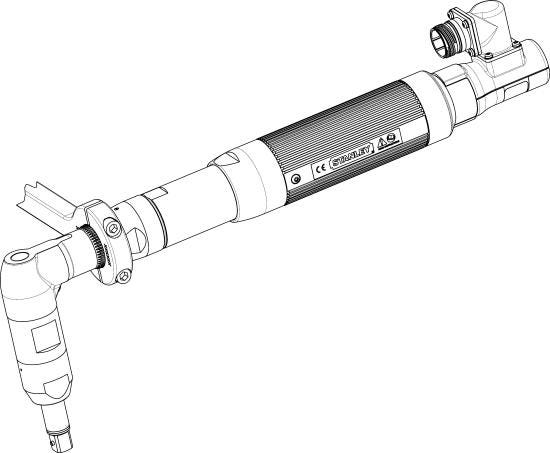

EB44MA19F1-55R EB Series Transducerized Nutrunner

Product description :

EB44MA19F1-55R Fixtured Corded Nutrunner With The Following Features: - Rated For 5.5 - 55 NM With A Recomended Working Range Of 11 - 44 NM - 119-1190 RPM - Right Angle Output with 38mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Redundant Torque And Angle Sensors - Direct Drive - Mult Handle For Remote Start Operation- 1 Inch Retraction - Dual Guage Transducer

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Fixtured

Handle Type

Output TypeRight Angle

Recommended Working Range11 - 44 NM

Useful Tool Range5.5 - 55 NM

Max Torque55.0

Min Speed (RPM)119.0

Max Speed (RPM)1190.0
