SKU No : EB44LC31-88

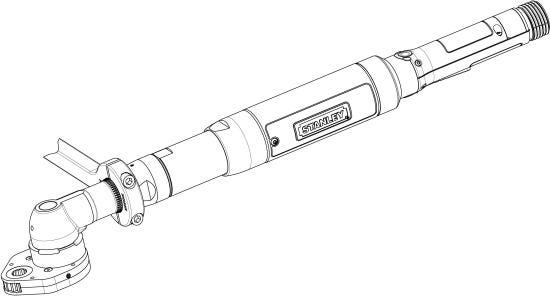

EB44LC31-88 EB Series Transducerized Nutrunner

Product description :

EB44LC31-88 Lever Start Corded Nutrunner With The Following Features: - Rated For 8.8 - 88 NM With A Recomended Working Range Of 17.6 - 70.4 NM - 52-520 RPM - Crowfoot Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeCrowfoot

Recommended Working Range17.6 - 70.4 NM

Useful Tool Range8.8 - 88 NM

Max Torque88.0

Min Speed (RPM)52.0

Max Speed (RPM)520.0
