SKU No : EB44LC10-88

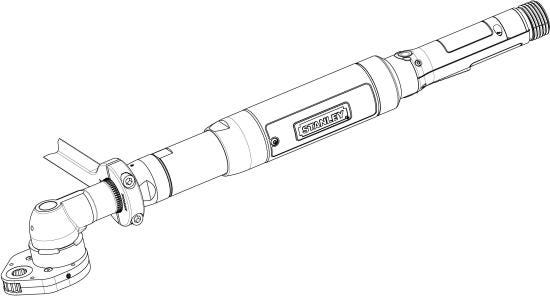

EB44LC10-88 EB Series Transducerized Nutrunner

Product description :

EB44LC10-88 Lever Start Corded Nutrunner With The Following Features: - Rated For 8.8 - 88 NM With A Recomended Working Range Of 17.6 - 70.4 NM - 52-520 RPM - Crowfoot Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Lever Start
Handle Type
Output TypeCrowfoot
Recommended Working Range17.6 - 70.4 NM
Useful Tool Range8.8 - 88 NM
Max Torque88.0
Min Speed (RPM)52.0
Max Speed (RPM)520.0
