SKU No : EB44LA22A-120E

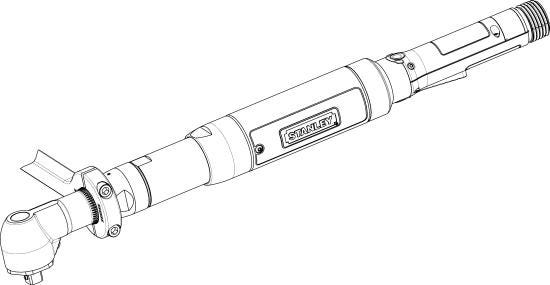

EB44LA22A-120E EB Series Transducerized Nutrunner

Product description :

EB44LA22A-120E Lever Start Corded Nutrunner With The Following Features: - Rated For 12 - 120 NM With A Recomended Working Range Of 24 - 96 NM - 55-550 RPM - Right Angle Output with 44mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle- Extended Gearcase
Corded
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Lever Start
Handle Type
Output TypeRight Angle
Recommended Working Range24 - 96 NM
Useful Tool Range12 - 120 NM
Max Torque120.0
Min Speed (RPM)55.0
Max Speed (RPM)550.0
