SKU No : EB34MA22A-115R

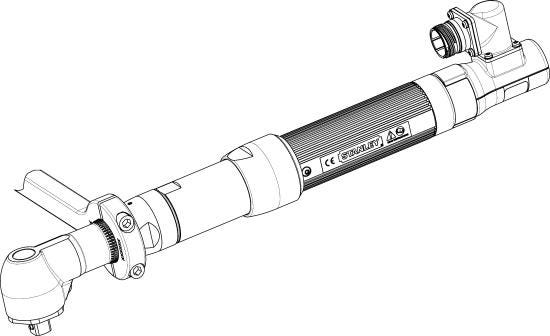

EB34MA22A-115R EB Series Transducerized Nutrunner

Product description :

EB34MA22A-115R Fixtured Corded Nutrunner With The Following Features: - Rated For 11.5 - 115 NM With A Recomended Working Range Of 23 - 92 NM - 34-335 RPM - 8 lb Tool Weight - Right Angle Output with 44mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Redundant Torque And Angle Sensors - Direct Drive - Mult Handle For Remote Start Operation- Dual Guage Transducer

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Fixtured
Handle Type
Output TypeRight Angle
Recommended Working Range23 - 92 NM
Useful Tool Range11.5 - 115 NM
Max Torque115.0
Min Speed (RPM)34.0
Max Speed (RPM)335.0
