SKU No : EB34LC586-74

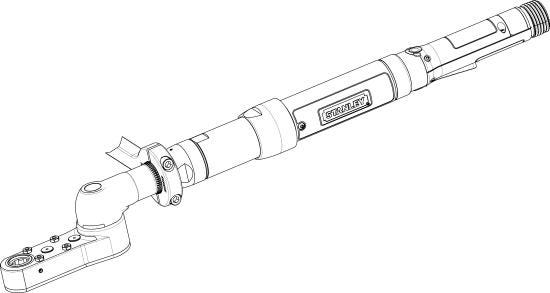

EB34LC586-74 EB Series Transducerized Nutrunner

Product description :

EB34LC586-74 Lever Start Corded Nutrunner With The Following Features: - Rated For 7.4 - 74 NM With A Recomended Working Range Of 14.8 - 59.2 NM - 41-408 RPM - Crowfoot Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 2D Drawings

Corded
Power Source
Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Lever Start
Handle Type
Output TypeCrowfoot
Recommended Working Range14.8 - 59.2 NM
Useful Tool Range7.4 - 74 NM
Max Torque74.0
Min Speed (RPM)41.0
Max Speed (RPM)408.0
