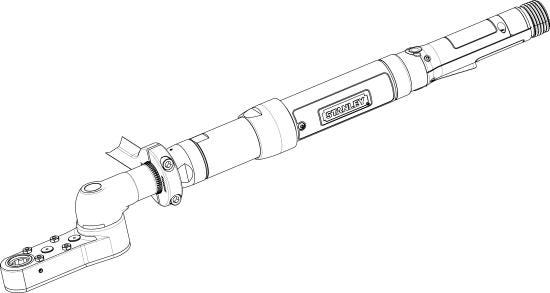

EB34LC464-95 EB Series Transducerized Nutrunner

Product description :

EB34LC464-95 Lever Start Corded Nutrunner With The Following Features: - Rated For 9.5 - 95 NM With A Recomended Working Range Of 19 - 76 NM - 33-321 RPM - Crowfoot Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 2D Drawings

Corded

Power Source

Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeCrowfoot

Recommended Working Range19 - 76 NM

Useful Tool Range9.5 - 95 NM

Max Torque95.0

Min Speed (RPM)33.0

Max Speed (RPM)321.0
