SKU No : EB34LC298-49

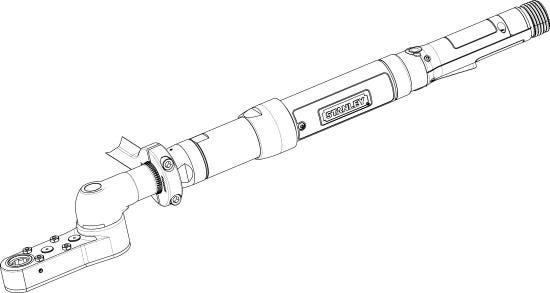

EB34LC298-49 EB Series Transducerized Nutrunner

Product description :

EB34LC298-49 Lever Start Corded Nutrunner With The Following Features: - Rated For 4.9 - 49 NM With A Recomended Working Range Of 9.8 - 39.2 NM - 60-595 RPM - Crowfoot Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Lever Start
Handle Type
Output TypeCrowfoot
Recommended Working Range9.8 - 39.2 NM
Useful Tool Range4.9 - 49 NM
Max Torque49.0
Min Speed (RPM)60.0
Max Speed (RPM)595.0
