SKU No : EB34LC226-59

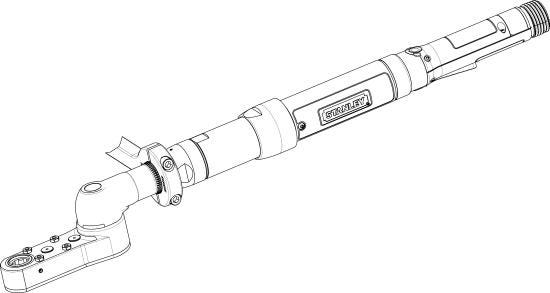

EB34LC226-59 EB Series Transducerized Nutrunner

Product description :

EB34LC226-59 Lever Start Corded Nutrunner With The Following Features: - Rated For 5.9 - 59 NM With A Recomended Working Range Of 11.8 - 47.2 NM - 50-500 RPM - 8 lb Tool Weight - Crowfoot Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Lever Start
Handle Type
Output TypeCrowfoot
Recommended Working Range11.8 - 47.2 NM
Useful Tool Range5.9 - 59 NM
Max Torque59.0
Min Speed (RPM)50.0
Max Speed (RPM)500.0
