SKU No : EB34LA22A-115

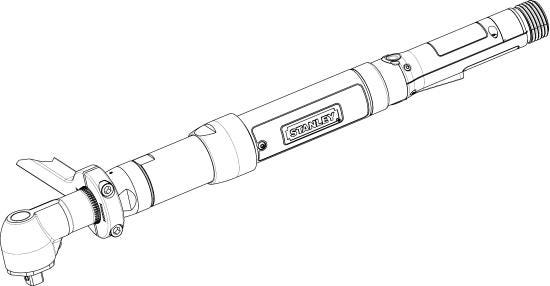

EB34LA22A-115 EB Series Transducerized Nutrunner

Product description :

EB34LA22A-115 Lever Start Corded Nutrunner With The Following Features: - Rated For 11.5 - 115 NM With A Recomended Working Range Of 23 - 92 NM - 34-335 RPM - 7 lb Tool Weight - Right Angle Output with 44mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeRight Angle

Recommended Working Range23 - 92 NM

Useful Tool Range11.5 - 115 NM

Max Torque115.0

Min Speed (RPM)34.0

Max Speed (RPM)335.0
