SKU No : EB33MBF1-28

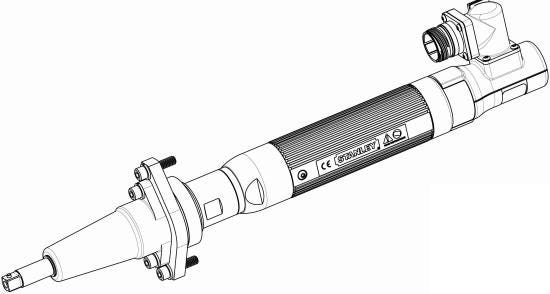

EB33MBF1-28 EB Series Transducerized Nutrunner

Product description :

EB33MBF1-28 Fixtured Corded Nutrunner With The Following Features: - Rated For 2.8 - 28 NM With A Recomended Working Range Of 5.6 - 22.4 NM - 159-1590 RPM - 6 lb Tool Weight - Straight Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Mult Handle For Remote Start Operation

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Fixtured
Handle Type
Output TypeStraight
Recommended Working Range5.6 - 22.4 NM
Useful Tool Range2.8 - 28 NM
Max Torque28.0
Min Speed (RPM)159.0
Max Speed (RPM)1590.0
