SKU No : EB33MB-40R

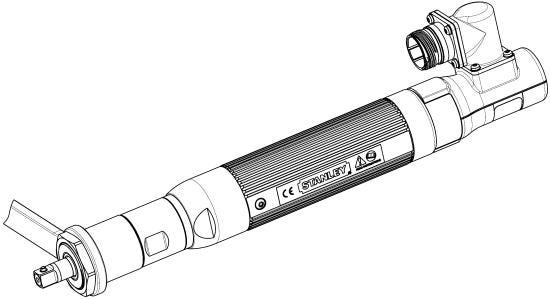

EB33MB-40R EB Series Transducerized Nutrunner

Product description :

EB33MB-40R Fixtured Corded Nutrunner With The Following Features: - Rated For 4 - 40 NM With A Recomended Working Range Of 8 - 32 NM - 112-1120 RPM - 4 lb Tool Weight - Straight Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Redundant Torque And Angle Sensors - Direct Drive - Mult Handle For Remote Start Operation- Dual Guage Transducer

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Fixtured
Handle Type
Output TypeStraight
Recommended Working Range8 - 32 NM
Useful Tool Range4 - 40 NM
Max Torque40.0
Min Speed (RPM)112.0
Max Speed (RPM)1120.0
