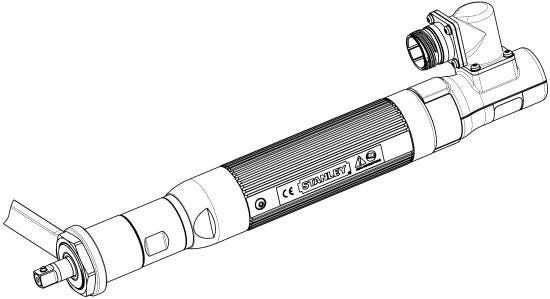

EB33MB-28R EB Series Transducerized Nutrunner

Product description :

EB33MB-28R Fixtured Corded Nutrunner With The Following Features: - Rated For 2.8 - 28 NM With A Recomended Working Range Of 5.6 - 22.4 NM - 159-1590 RPM - 4 lb Tool Weight - Straight Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Redundant Torque And Angle Sensors - Direct Drive - Mult Handle For Remote Start Operation- Dual Guage Transducer

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Fixtured

Handle Type

Output TypeStraight

Recommended Working Range5.6 - 22.4 NM

Useful Tool Range2.8 - 28 NM

Max Torque28.0

Min Speed (RPM)159.0

Max Speed (RPM)1590.0
