SKU No : EB33MA15-27

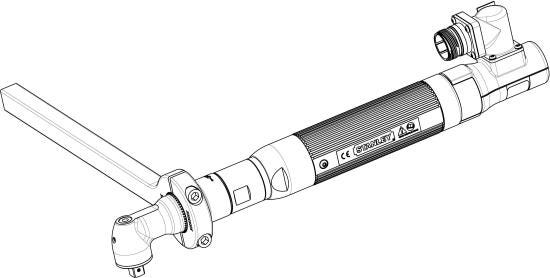

EB33MA15-27 EB Series Transducerized Nutrunner

Product description :

EB33MA15-27 Fixtured Corded Nutrunner With The Following Features: - Rated For 2.7 - 27 NM With A Recomended Working Range Of 5.4 - 21.6 NM - 152-1515 RPM - 5 lb Tool Weight - Right Angle Output with 30mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Mult Handle For Remote Start Operation

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Fixtured
Handle Type
Output TypeRight Angle
Recommended Working Range5.4 - 21.6 NM
Useful Tool Range2.7 - 27 NM
Max Torque27.0
Min Speed (RPM)152.0
Max Speed (RPM)1515.0
