SKU No : EB33LT74-30

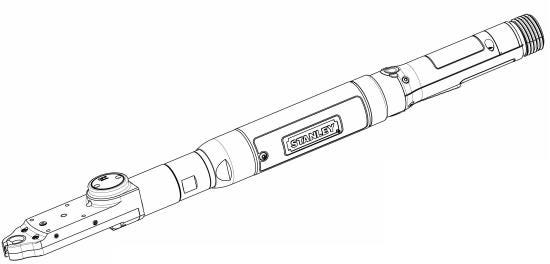

EB33LT74-30 EB Series Transducerized Nutrunner

Product description :

EB33LT74-30 Lever Start Corded Nutrunner With The Following Features: - Rated For 3 - 30 NM With A Recomended Working Range Of 6 - 24 NM - 85-845 RPM - 5 lb Tool Weight - Tubenut Output - Transducer Controlled With Cm ≥ 1.5, Cmk ≥ 1.25 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 1.5, Cmk ≥ 1.25 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Lever Start
Handle Type
Output TypeTubenut
Recommended Working Range6 - 24 NM
Useful Tool Range3 - 30 NM
Max Torque30.0
Min Speed (RPM)85.0
Max Speed (RPM)845.0
