SKU No : EB33LC246-33

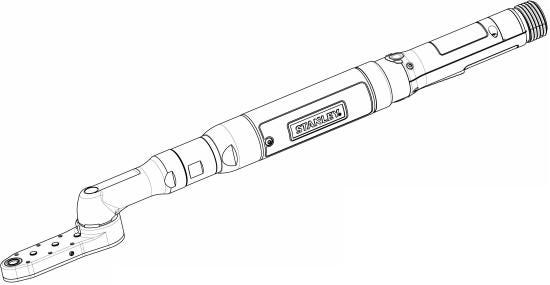

EB33LC246-33 EB Series Transducerized Nutrunner

Product description :

EB33LC246-33 Lever Start Corded Nutrunner With The Following Features: - Rated For 3.3 - 33 NM With A Recomended Working Range Of 6.6 - 26.4 NM - 88-880 RPM - Crowfoot Output - Transducer Controlled With Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 2.0, Cmk ≥ 1.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Lever Start
Handle Type
Output TypeCrowfoot
Recommended Working Range6.6 - 26.4 NM
Useful Tool Range3.3 - 33 NM
Max Torque33.0
Min Speed (RPM)88.0
Max Speed (RPM)880.0
