SKU No : EB33LA15-40E

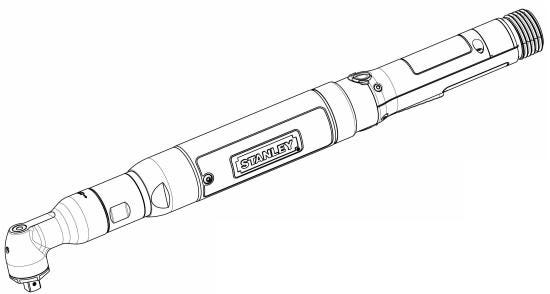

EB33LA15-40E EB Series Transducerized Nutrunner

Product description :

EB33LA15-40E Lever Start Corded Nutrunner With The Following Features: - Rated For 4 - 40 NM With A Recomended Working Range Of 8 - 32 NM - 102-1015 RPM - Right Angle Output with 30mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle- Extended Gearcase
Corded
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Lever Start
Handle Type
Output TypeRight Angle
Recommended Working Range8 - 32 NM
Useful Tool Range4 - 40 NM
Max Torque40.0
Min Speed (RPM)102.0
Max Speed (RPM)1015.0
