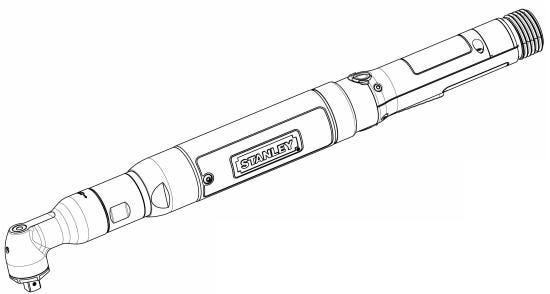

EB33LA15-40 EB Series Transducerized Nutrunner

Product description :

EB33LA15-40 Lever Start Corded Nutrunner With The Following Features: - Rated For 4 - 40 NM With A Recomended Working Range Of 8 - 32 NM - 102-1015 RPM - 4 lb Tool Weight - Right Angle Output with 30mm Angle Head Diameter - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeRight Angle

Recommended Working Range8 - 32 NM

Useful Tool Range4 - 40 NM

Max Torque40.0

Min Speed (RPM)102.0

Max Speed (RPM)1015.0
