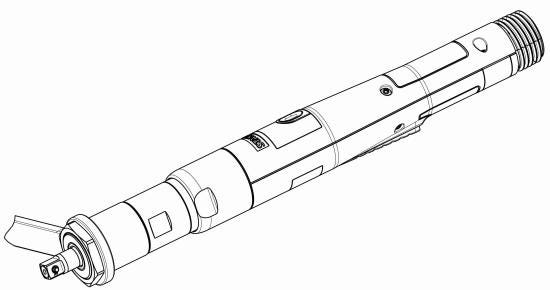

EB22LB-16 EB Series Transducerized Nutrunner

Product description :

EB22LB-16 Lever Start Corded Nutrunner With The Following Features: - Rated For 1.6 - 16 NM With A Recomended Working Range Of 3.2 - 12.8 NM - 134-1340 RPM - Straight Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Lever Start handle

Download 3D Drawings

Download 2D Drawings

Corded

Power Source

Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%

External Torque Scatter Rating

Brand

Transducer

Torque Measurement

Direct Drive

Drive Type

Lever Start

Handle Type

Output TypeStraight

Recommended Working Range3.2 - 12.8 NM

Useful Tool Range1.6 - 16 NM

Max Torque16.0

Min Speed (RPM)134.0

Max Speed (RPM)1340.0
