SKU No : EB12PP-4

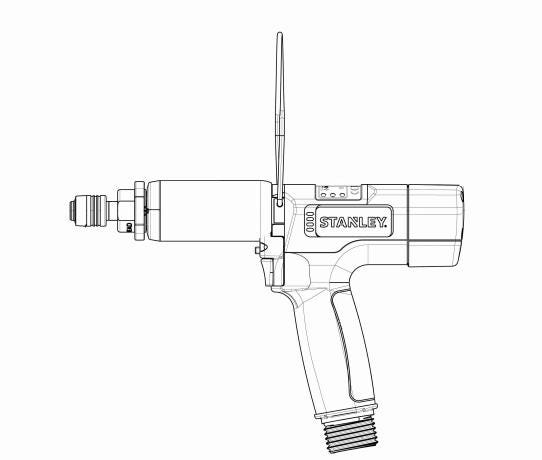

EB12PP-4 EB Series Transducerized Nutrunner

Product description :

EB12PP-4 Pistol Grip Corded Nutrunner With The Following Features: - Rated For 0.4 - 4 NM With A Recomended Working Range Of 0.8 - 3.2 NM - 112-1114 RPM - 2 lb Tool Weight - Push To Start with Straight Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Pistol Grip handle

Download 3D Drawings

Download 2D Drawings

Corded
Power Source
Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
External Torque Scatter Rating
Brand
Transducer
Torque Measurement
Direct Drive
Drive Type
Pistol Grip
Handle Type
Output TypePush To Start with Straight
Recommended Working Range0.8 - 3.2 NM
Useful Tool Range0.4 - 4 NM
Max Torque4.0
Min Speed (RPM)112.0
Max Speed (RPM)1114.0
